Our Price £6,395.00
0% APR finance from £106.58 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

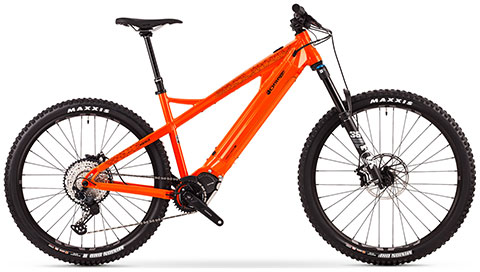

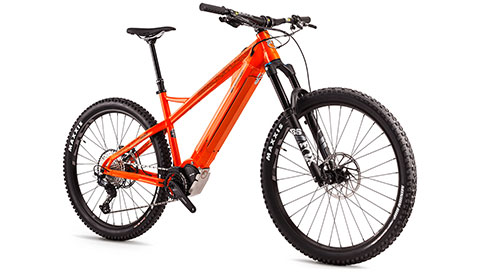

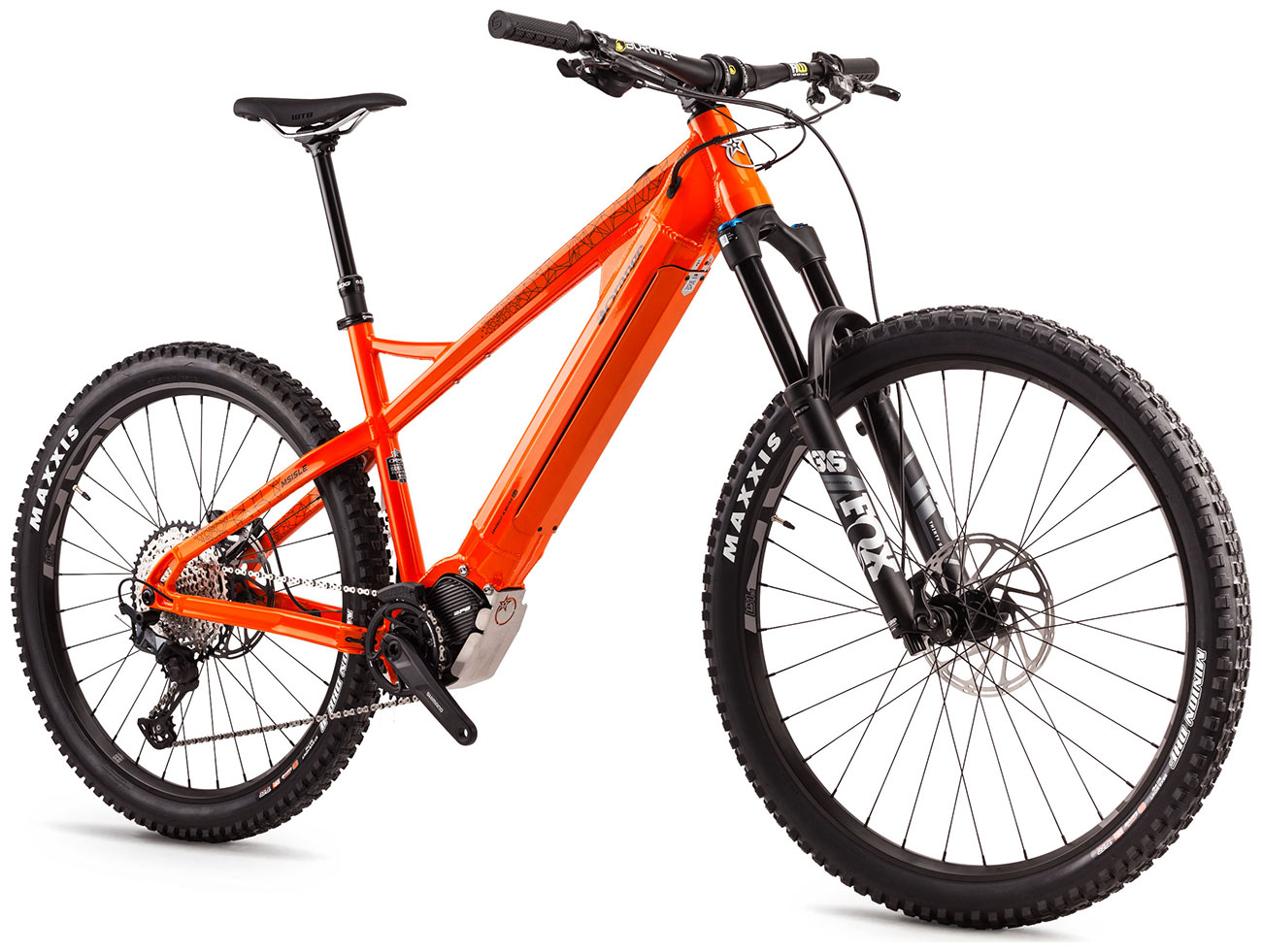

If you love ragging hardtails, then the spectacular Orange MsIsle is the e-Bike you've been waiting for.
The heart of this bike, as you would expect, is the handcrafted Halifax built frame. From the brand new CNCed UDH compatible dropouts, all the way through to the zero-stack headtube this frame has been honed and perfected.Seat tube sizing has been reduced to give riders plenty of scope for dropper seatposts. Bolt mount options on the frame mean you can add our Strange carry-on accessory mount or bottle to suit, all inside the front triangle.
Rock-solid handling with signature Orange geometry, tweaked a little here and there to get its balance spot on with the weight of the motor unit and battery. Climbing on the new Orange MsIsle is clinically efficient, every watt is delivered to the trail driving you onwards – it's mind blowing.
As with its full suspension stablemates, the Orange MsIsle uses a 630Wh battery designed to be easily removable using just a 4mm allen key. it take's just a of second or two to drop out the battery for easy charging. If you've gone through a 630Wh battery and you still want more then “double battery days” are very much a reality and we have a system that means this is as easy as possible. Second batteries are available from Orange and come with the protective cover so "drop and swap" is easy.
Sunset Cycles offers the 2024 Orange MsIsle Pro 29/27.5 hardtail electric-assist mountain bike with up to 48 months 0% finance and free delivery.
The 2024 Orange MSISLE range: MsIsle Pro | MsIsle AXS
Frame & Fork | |
Tubeset | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. |
Colour | Gloss Fizzy Orange with Black Decals |
Fork | Fox Performance 36 Float 150mm 29 |
Headset | FPD 49mm / 56mm zerostack |
Rear Axle | Bolt Type Allen Key Head (Boost 12 x 148mm Hub) |
Wheels & Tyres | |
Wheelset | Strange Front + Hope Pro 4 Rear, E13 LG1 EN 27.5 + 29 |
Tyres | Maxxis Minion DHF 2.5 3c EXO+ 29 / DHR II 2.4 3c EXO+ 27.5 |
Drivetrain | |
Crankset | Shimano M600 165 E 34t |
Rear Mech | Shimano SLX 12spd |
Cassette | Shimano SLX 10-51T 12spd |
Shifters | Shimano SLX 12spd |
Bottom Bracket | Shimano EP8 DU Integrated |
Chain | KMC 12spd |
Power Assist | |
Drive Display | Shimano EM800 |
Drive Unit | Shimano EP801 |
Control Switch | Shimano EM800 |
Battery | Shimano E806 630wh Integrated battery Gen 2 |
Braking | |
Brakes | SRAM Guide RE 200/200 |
Finishing Kit | |
Stem | Burgtec Enduro Black 42.5mm |
Handlebar | Burgtec RideWide Enduro 800mm |
Grips | Strange Grappler Lock-On |
Seatpost | SDG Tellis 150/170mm |
Saddle | WTB Silverado SL |
Seat Clamp | Strange Bolted |
Frame Size | Small | Medium | Large | X Large |
Rider Height Guidance* | 5'3" to 5'7" | 5'6" to 5'10" | 5'9" to 6'1" | 6'0" to 6'5" |
Seat Tube Length | 16" | 17" | 18" | 19" |
A. Head Angle | 64° | 64° | 64° | 64° |
B. Seat Angle | 75° | 75° | 75° | 75° |
C. Top Tube | 623 | 642 | 661 | 675 |
D. Top Tube (effective) | 610 | 630 | 650 | 670 |
E. BB Height (from ground) | 297 | 297 | 297 | 297 |
BB height (from REAR axle) | -58 | -58 | -58 | -58 |
F. Chainstay | 426 | 426 | 426 | 426 |
G. Head Tube | 130 | 130 | 140 | 150 |
H. Wheel base | 1204 | 1224 | 1246 | 1268 |
J. Reach | 435 | 455 | 473 | 491 |
K. Stack | 675 | 675 | 684 | 693 |
O. Fork Offset | 44 | 44 | 44 | 44 |
Standover | 675 | 720 | 730 | 743 |
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø front tyre combined with a 708 mm rear tyre. |
||||
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. |
