Our Price From £2,495.00*
*exact price is dependent on options selected
0% APR finance from £55.44 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

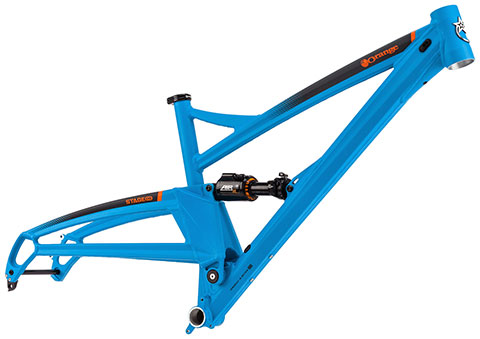

The image above shows the frame in Matt Cyan Blue finish with Cane Creek DB Air IL shock upgrade
For those who love their wheels bigger, there's the 29 inch wheeled Orange Stage Evo, it features equally radical geometry numbers, especially for a bike of its category. It majors on adaptability and as such shares the same Evo suspension progression to give our tuned shocks that wonderful bottomless feel. Which wheel size you opt for is a personal choice. If your local terrain brings you long climbs, big descents and teeth chattering root sections the 29er Orange Stage Evo is your perfect rig.
Sunset Cycles offers the 2022 Orange Stage Evo mountain bike frame with up to 36 months 0% finance and free delivery.
| Frame Specification | |
| Colour | View frame colour options |
| Tubeset | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 120. |
| Rear Shock | RockShox Super Deluxe Ultimate 190x45 |
| Rear Axle | Bolt Type Allen Key Head (Boost 148mm Hub) |
| Seat Clamp | Strange Bolted |
| Frame Size | Small | Medium | Large | X Large |
| Rider Height Guidance* | 5'0" to 5'6" | 5'5" to 5'9" | 5'8" to 6'1" | 5'11" to 6'3" |
| Seat Tube Length | 15" | 17" | 18" | 19" |
| A. Head Angle | 65° | 65° | 65° | 65° |
| B. Seat Angle (Actual) | 74º | 74º | 74º | 74º |
| B. Seat Angle (Effective) | 76º | 76º | 76° | 76º |
| C. Top Tube | 578 | 610 | 618 | 636 |
| D. Top Tube (Effective) | 595 | 615 | 635 | 655 |
| E. BB Height (from ground) | 320 | 320 | 320 | 320 |
| E. BB height (from axles) | -50 | -50 | -50 | -50 |
| F. Chainstay | 443 | 443 | 443 | 443 |
| G. Head Tube | 100 | 100 | 110 | 130 |
| H. Wheel base | 1198 | 1218 | 1240 | 1262 |
| J. Reach | 440 | 460 | 478 | 496 |
| K. Stack | 620 | 620 | 630 | 638 |
| O. Fork Offset | 42 | 42 | 42 | 42 |
| T. Rear Travel | 120 | 120 | 120 | 120 |
| Standover | 690 | 709 | 736 | 762 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 740 mm Ø tyre. | ||||
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | ||||
