Our Price From £2,595.00*
*exact price is dependent on options selected
0% APR finance from £57.67 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.
The Orange Stage 6 Evo is an aggressive trail bike with 29” wheels, designed to take a 150mm fork, with 140mm of rear wheel travel. Read more...

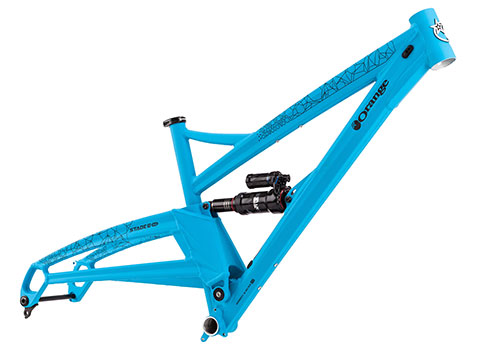

The image above shows the frame in Matt Cyan Blue finish
“Hair raisingly fast, with well-balanced handling” was the brief. We reckon the Orange Stage 6 Evo is the bike to raise the hairs on the back of your neck before setting you straight back to cool, calm and collected. If you love the feeling of dropping into a fast trail with the bike accelerating beneath you, the track’s texture coming up through the contact points and the suspension flowing over the rocks and roots, then this is the bike for you. No traction control button, just full-on sport mode - you're welcome.
Full on Evo from Orange means you have honed geometry with decades of development and thousands of miles of test riding. The Orange Stage 6 Evo is an aggressive trail bike with 29” wheels, designed to take a 150mm fork, with 140mm of rear wheel travel. This bike is fast, fun, and more than happy to ride terrain more aggressive than its travel numbers would suggest.
With the emphasis placed firmly on geometry and the incredible performance benefits that brings, the Orange Stage 6 Evo could be the only bike you’ll ever need. The frame features our new asymmetric swingarm construction which improves stiffness and strength, a more progressive suspension curve, offset bearing housing to clear the chain-ring, allowing for a more neutral pivot position. The bolt-thru rear axle now threads into a UDH gear hanger – we believe this is a promising new 'standard’ and we approve of. UDH is universally available, simple and robust – a great step forward.
Neat features that we’ve also added to the new Orange Stage 6 Evo frame include accessory mounts under the top-tube, to support the oodles of new and innovative accessories coming onto the scene. When you find your favourite, you’ll be good to go.
Sunset Cycles offers the 2022 Orange Stage 6 Evo mountain bike frame with up to 36 months 0% finance and free delivery.
Frame Specification | |
Colour | View frame colour options |
Tubeset | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 140. |
Rear Shock | RockShox Super Deluxe Ultimate 210x55 |
Rear Axle | Bolt Type Allen Key Head (Boost 148mm Hub) |
Seat Clamp | Strange Bolted |
Frame Size | Small | Medium | Large |
Rider Height Guidance* | 5'6" to 5'10" | 5'9" to 6'1" | 6'0" to 6'5" |
Seat Tube Length | 17" | 18" | 19" |
A. Head Angle | 64° | 64° | 64° |
B. Seat Angle | 76° | 76° | 76° |
C. Top Tube | 621 | 632 | 640 |
D. Top Tube (effective) | 625 | 645 | 665 |
E. BB Height (from ground) | 330 | 330 | 330 |
BB height (from axles) | -40 | -40 | -40 |
F. Chainstay | 467 | 467 | 467 |
G. Head Tube | 110 | 110 | 120 |
H. Wheel base | 1272 | 1291 | 1313 |
J. Reach | 468 | 487 | 505 |
K. Stack | 630 | 630 | 640 |
T. Rear Travel | 140 | 140 | 140 |
O. Fork Offset | 42 | 42 | 42 |
Standover | 733 | 744 | 797 |
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre. | |||
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. |
