Our Price £545.00
0% APR finance from £20.44 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

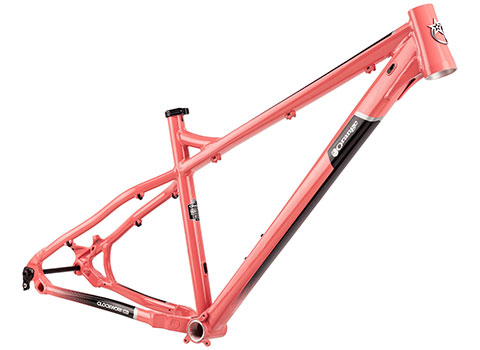

The image above shows the frame in Angel Delight finish
The Orange Clockwork Evo 29 pushes the 29er model into the hard and fast trail arena. Running a 130mm travel fork, this one's for the fast and loose big wheel hardtail fans out there.
The Orange Clockwork Evo 29 shares the same tidy frame features as its 27.5 inch wheel sibling: neat external routing that tucks the cables cleanly under the top tube and internal stealth cable routing for a dropper post are both nice touches. The sturdy 12x148mm Boost bolt-though rear axle adds strength and rigidity for the 29er wheelset.
Trail centre hardtail, or out and out explorer, it’s up to you. But however you choose to ride the Orange Clockwork Evo 29, it will be a more than worthy trail buddy.
Sunset Cycles offers the 2023 Orange Clockwork Evo 29 Frameset with up to 24 months 0% finance and free delivery.
The 2023 Orange CLOCKWORK range: Clockwork Evo 29 Frame | Clockwork EVO Comp 27.5
| Tubeset | 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29. |
| Rear Axle | Bolt Type Allen Key Head (Boost 12 x 148mm Hub) |
| Seat Clamp | Strange Bolted |
| Frame Size | Medium | Large | X Large |
| Rider Height Guidance* | 5'6" to 5'10" | 5'9" to 6'1" | 6'0" to 6'5" |
| Seat Tube Length | 17" | 18" | 19" |
| A. Head Angle | 65.5° | 65.5° | 65.5° |
| B. Seat Angle | 75.5° | 75.5° | 75.5° |
| C. Top Tube | 625 | 638 | 654 |
| D. Effective TT | 624 | 642 | 667 |
| E. BB Height (axle diff) | -68 | -68 | -68 |
| E. BB Height (from ground) | 296 | 296 | 296 |
| F. Chainstay | 450 | 450 | 450 |
| G. Head Tube | 120 | 130 | 135 |
| H. Wheelbase | 1215 | 1239 | 1261 |
| J. Reach | 455 | 475 | 495 |
| K. Stack | 654 | 663 | 668 |
| O. Fork Offset | 44 | 44 | 44 |
| Stem Length | 50 | 50 | 50 |
| Standover | 676 | 694 | 730 |
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 750 mm Ø tyre. |
|||
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | |||
