Our Price £5,515.00
0% APR finance from £91.92 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

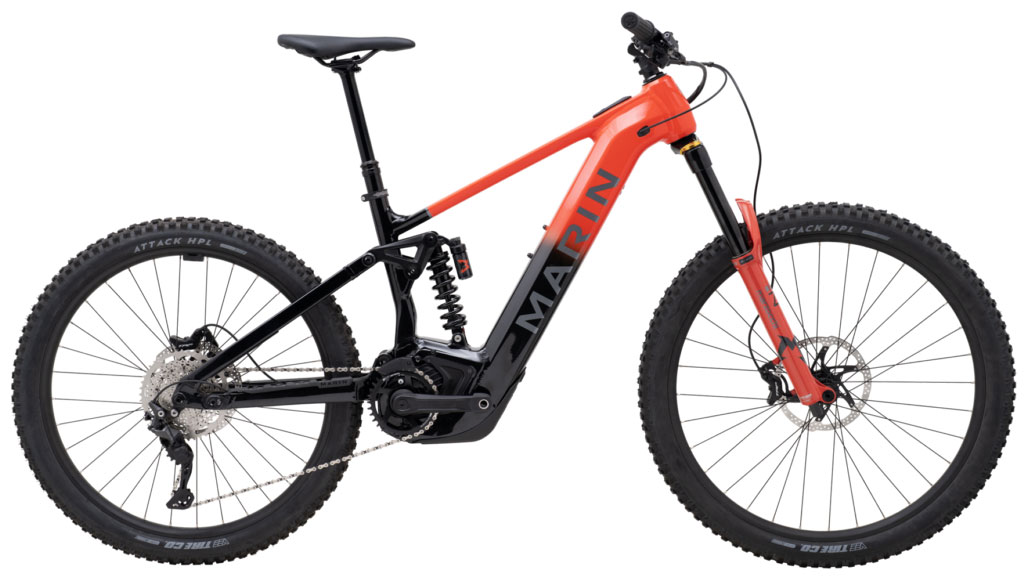

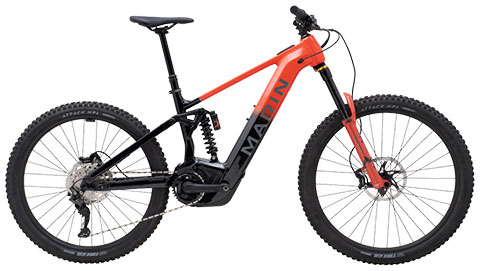

The all-new Marin Alpine Trail E (Bosch) is our biggest, baddest beast of a bike family. Moving one step beyond in capability from the Alpine Trail E models, the new Alpine Trail E (Bosch) eMTBs are constructed with all-new Series 4 aluminum MultiTrac 2 LT frames that feature significant upgrades for riders who challenge themselves with the steepest, most technical terrain, as well as those who require the maximum in range.
The Marin Alpine Trail E1 (Bosch) is smartly spec'd with choice Marzocchi suspension with a coil shock out back, Shimano's innovative CUES 10-speed drivetrain and Tektro's Slate EVO 4-piston brakes with 203mm x 2.3mm rotors for when you need to reel in the party.
Sunset Cycles offers the 2024 Marin Alpine Trail E1 (Bosch) full suspension electric mountain bike with up to 48 months 0% finance and free delivery.
The Marin ALPINE TRAIL E range: Alpine Trail E1 (Bosch) | Alpine Trail E2 (Bosch)
| Frame | All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| Fork | Marzocchi Z1, 170mm, 29", 110x15 Kabolt Thru Axle, 44mm Offset |
| Rear Shock | Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount, 30xM8 Lower Hardware, Custom Tune, Spring Rate S/M = 350 lbs/in M/L = 450 lbs/in |
| Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Hub Rear | Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body |
| Hub Front | Shimano FH-TC500, 110x15mm, Centerlock, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5" |
| Derailleur Rear | Shimano CUES RD-U6000 GS, 10-Speed |
| Shift Lever | Shimano CUES SL-U6000-10R, 10-Speed |
| Crankset | e*thirteen e*spec Plus, 160mm Length |
| Motor | Bosch Performance Line CX, 85Nm, 20MPH (US, NZ)/25 km/h (Rest of World) Top Assisted Speed |
| Chain | Shimano LG500 |
| Cassette | Shimano CS-LG300-10, 11-48T |
| Brakes Front | TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick |
| Brakes Rear | TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick |
| Brake Levers | TRP Slate EVO |
| Handlebar | Marin Mini Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips | Marin Grizzly Lock-On |
| Headset | FSA Custom Headset, Adjustable HTA Design |
| Seatpost | TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm |
| Saddle | Marin Speed Concept |
| Pedals | |
| Battery | Bosch PowerTube 750 Wh |
| Display | Bosch BRC3100 Systems Controller |
| Switch | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| Extras | e*thirteen e*Spec Chainguide Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle, Bosch EB12.110.016; 2A Charger |
| Range, Charging Time | 31-78 miles/50-125km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions) |
| Frame Size | Rider Height Guidance* |
| Small | 5'3" to 5'6" |
| Medium | 5'6" to 5'10" |
| Large | 5'10" to 6'2" |
| X Large | 6'2" to 6'4" |
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | |
