Our Price £5,000.00
0% APR finance from £83.33 per month
To apply for finance, add the product to your basket and then select the finance option. Finance is subject to status. Minimum spend applies.

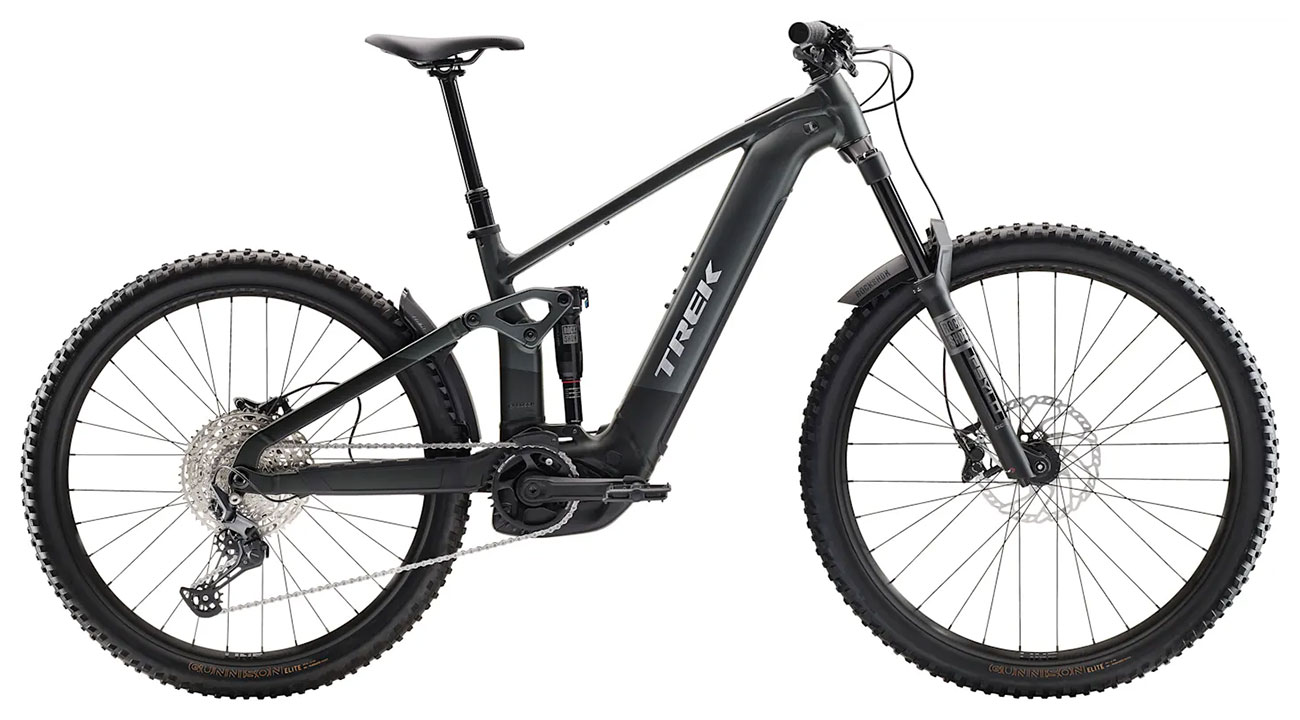

The Trek Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. It comes equipped with a Bosch Performance CX drive system with full power for crushing laps and big climbs while its massive battery takes you the distance. 160 mm of front and rear travel make Rail+ super capable in the rough and rowdy, and adjustable geometry lets you customise it for how and where you ride.
Sunset Cycles offers the 2025 Trek Rail+ 5 Gen 5 enduro e-bike in Lithium Grey finish with up to 48 months 0% finance and free delivery.
| Frame & Fork | |
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel |
| Fork | RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel |
| Shock | RockShox Deluxe Select+ RT, 205 mm x 65mm |
| Wheels & Tyres | |
| Hub front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Size: S, M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" Size: M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| E-System | |
| Battery | Bosch PowerTube 800 Wh, smart system |
| Charger | Bosch standard 2A, 230V, smart system |
| Controller | Bosch System Controller BRC3100, smart system |
| Motor | Bosch Performance Line CX, 20 mph (25 km/h in Europe) |
| Drivetrain | |
| Shifter | Shimano Deore M6100, 12-speed |
| Rear derailleur | Shimano Deore M6100, long cage |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Pedal | VP-536 nylon platform |
| Components | |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | Size: S TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm Size: M, L, XL TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Brake rotor | Shimano RT66, 6-bolt, 203 mm |
| Weight | |
| Weight | M - 25.28 kg / 55.74 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Frame Size | Rider Height* (metric) | Rider Height* (imperial) |
| Small | 155 - 165 cm | 5'1" - 5'5" |
| Medium | 165 - 176 cm | 5'5" - 5'9" |
| Large | 177 - 188 cm | 5'10" - 6'2" |
| X Large | 188 - 195 cm | 6'2" - 6'5" |
| *This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you. | ||
