Sale Price £4,999.00 (Save 26%)
Regular Price £6,795.00
DUNE is the last word in Mondraker’s light ebike range. Taking after the NEAT in some key aspects such as lightness and agility, it takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL. DUNE is the black sheep of the family, naughty and nice at the same time, the super enduro of light ebikes. Weighing in at under 20kg it’s the waking dream of anyone who’s been torn between a modern enduro bike and a full power ebike but who just couldn’t decide. Now they won’t have to.
The entry level Mondraker Dune R gives up little to its more expensive siblings. A 170mm FOX 38 Float 3P Performance Grip fork keeps the front wheel in check while a Fox Float X Performance EVOL shock tames things at the back, SRAM supplies the GX Eagle rear mech and E.13 their E*Spec Plus cranks, ONOFF provide the Pija dropper post, SRAM the DB8 brakes and e*thirteen Grappler Core wheels with 30mm wide aluminium rims round things out.

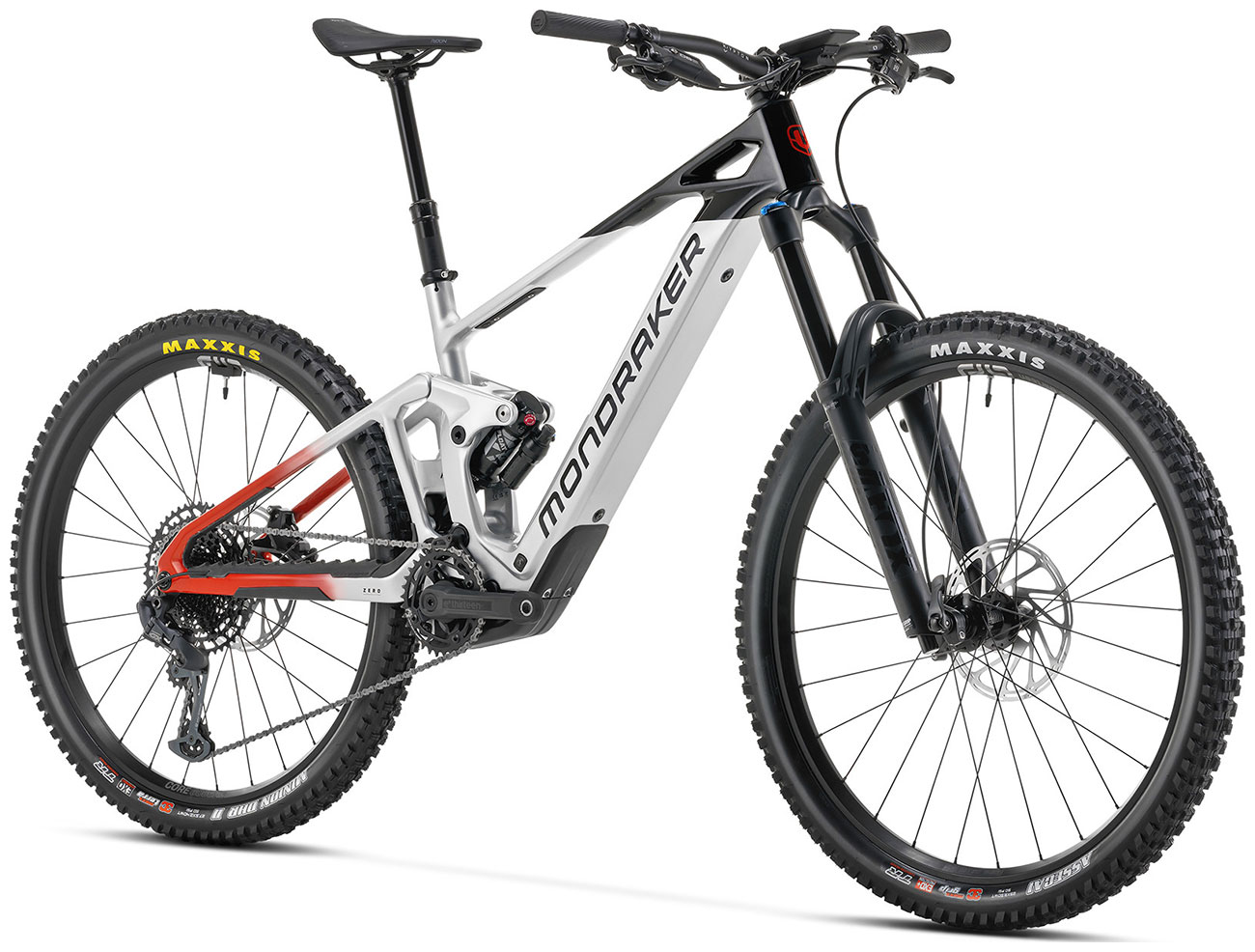

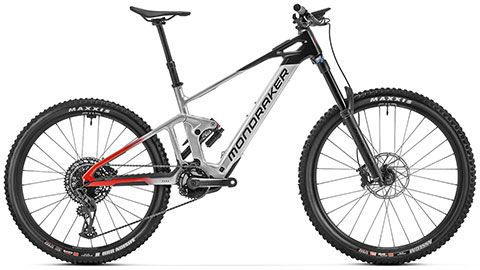

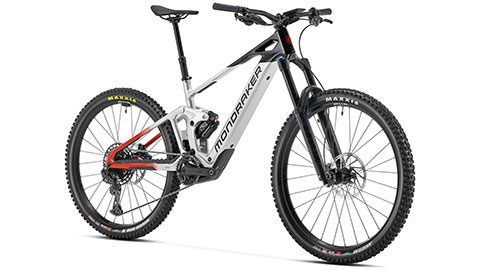

Sunset Cycles offers the 2024 Mondraker Dune R super enduro lightweight e-bike in Racing Silver / Black / Flame Red finish with free delivery.
The 2024 Mondraker DUNE range: Dune R | Dune RR
| FRAME | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |

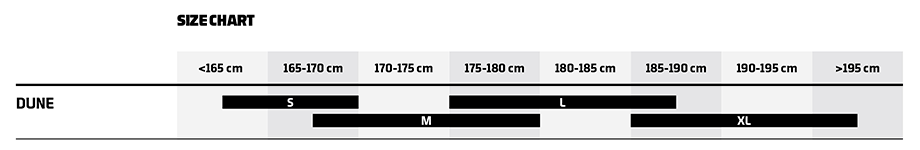

| SIZES | S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| REAR SHOCK | Fox Float X Performance EVOL, 505x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| SHOCK SETTINGS | Medium compression, medium rebound, air volume spacer 0.4 |
| FORK | FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| HEADSET | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| STEM | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| HANDLEBAR | Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| GRIPS | Onoff Desert, 1lock-on, 135mm |
| SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| SADDLE | Fizik Terra Aidon Slim X5 |
| FRONT BRAKE | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| REAR BRAKE | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| BRAKE LEVER | Sram DB8, tool reach adjust, lever pivot bushings |
| RIMS | e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
| SPOKES | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| FRONT HUB | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| REAR HUB | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
| FRONT TIRE | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| REAR TIRE | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| CRANKSET | E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
| RINGS | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| CHAIN | Sram NX Eagle, 12s, Powerlock |
| REAR DERRAILLEUR | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| SHIFT LEVERS | Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| CASSETTE | Sram PG-1230, 11-50T, 12s |
| DERAILLEUR HANGER | Sram UDH |
| WEIGHT | 19,9 kg |
| DISPLAY | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| MOTOR | Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide |
| BATTERY | Bosch Compact Powertube 400Wh |
