Orange 2024 Crush 29 Pro

Orange 2024 Crush 29 Pro

Add this product to your basket...

Frame Size: Medium (17in) MPN: B24CR29PRO-MD In stock and delivered within 2-4 working days
Sale Price £1,499.00 (Save 37%) Regular Price £2,399.00
Frame Size: Large (18in) MPN: B24CR29PRO-LG In stock and delivered within 2-4 working days
Sale Price £1,499.00 (Save 37%) Regular Price £2,399.00
Frame Size: X Large (20in) MPN: B24CR29PRO-XL
Sale Price £1,499.00 (Save 37%) Regular Price £2,399.00

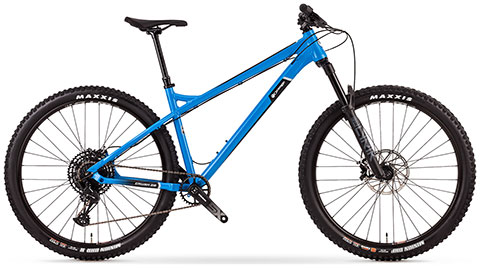

Description: Orange Crush 29 Pro 2024 Hardtail Bike

When it comes to swift but gnarly hardtails the Orange Crush line-up is the benchmark others aim for. The original aluminium hardcore hardtail has frame geometry to keep it ahead of the game. The frame has gone through a couple of geometry adjustments and a few construction refinements. First, and most obvious, is the new one-piece chainstay yoke. It is forged for maximum toughness and provides improved lateral rigidity for pedalling performance, and leaves plenty of clearance for larger tyres, while giving the chainring plenty of space to breathe in muddy conditions.

The new frame features a tapered headtube, giving us more weld area to add strength and provide more support for the lower headset bearing. Where others skimp on the bottom bracket shell, we belive the extra strength benefits of a 73mm width in this area pays back big-time of a hardtail that gets the thrashing we know a typical Orange Crush will get.

Sunset Cycles offers the 2024 Orange Crush 29 Pro hardtail mountain bike in Sparks Blue finish with free delivery.

Full Specification: Orange Crush 29 Pro 2024 Hardtail Bike

Frame & Fork
Colour Sparks Blue with Black/Silver Decals
Tubeset 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Fork RockShox Lyrik 140mm 29
Headset FPD 44mm / 56mm zerostack
Rear Axle Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Wheels & Tyres
Wheelset WTB ST i30 on Strange 29
Tyres Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29
Drivetrain
Crankset SRAM SX Eagle 32t
Rear Mech SRAM SX Eagle 12spd
Cassette SRAM SX 1210 11-50T Eagle
Shifters SRAM SX Eagle
Bottom Bracket SRAM DUB
Chain SRAM SX Eagle
Braking
Brakes SRAM Guide T 200/180
Finishing Kit
Stem Race Face Chester M35 x 40mm
Handlebar RaceFace Chester 780mm M35
Grips Strange Grappler Lock-On
Seatpost KS Ragei 150/170mm Drop
Saddle SDG Strange Bel Air III Steel
Seat Clamp Strange Bolted

Size Guide: Orange Crush 29 Pro 2024 Hardtail Bike

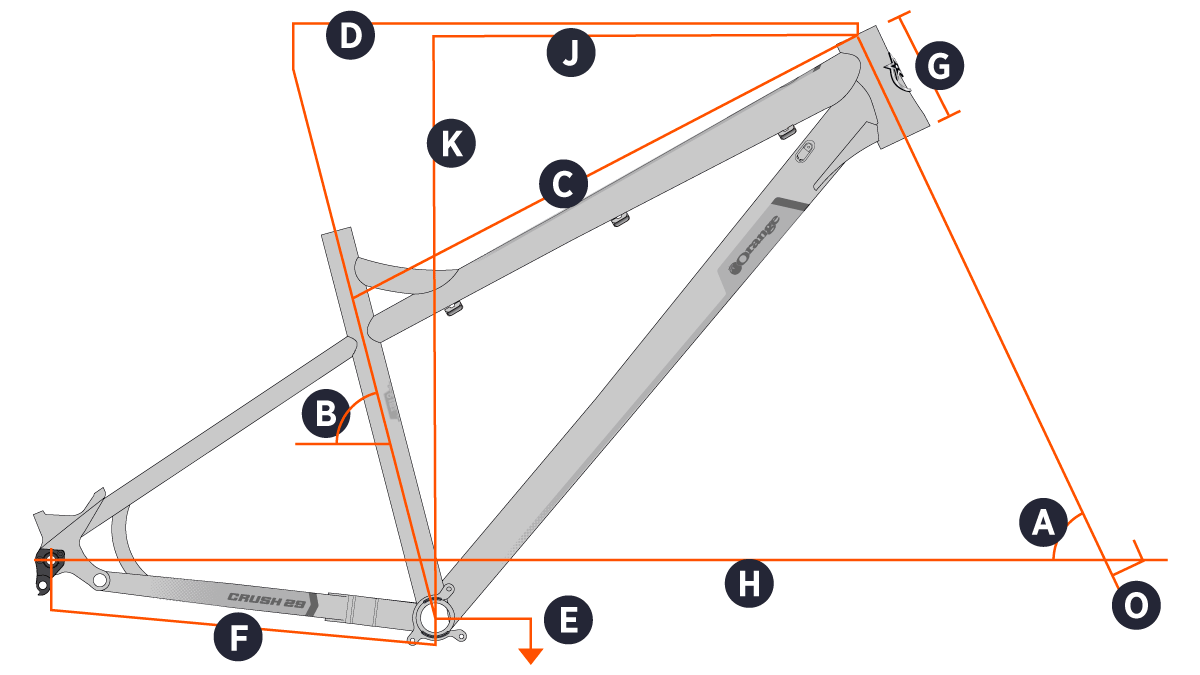

Orange 2024 Crush 29 Frame Geometry
Frame Size Medium Large X Large
Rider Height Guidance* 5'6" to 5'10" 5'9" to 6'1" 6'0" to 6'5"
Seat Tube Length 17" 18" 20"
A. Head Angle 64.5° 64.5° 64.5°
B. Seat Angle 75.5° 75.5° 75.5°
C. Top Tube 643 658 675
D. Top Tube (effective) 630 652 675
E. BB Height (from ground) 310 310 310
E. BB height (axle DIFF) -68 -68 -68
F. Chainstay 445 445 445
G. Headtube 120 130 140
H. Wheel base 1229 1254 1278
J. Reach 460 480 500
K. Stack 657 666 675
O. Fork Offset 44 44 44
Standover 691 708 749
Stem length 50 50 50
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 756 mm Ø tyre.
*This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. Please contact us if you are in any doubt about the correct bike size for you.
